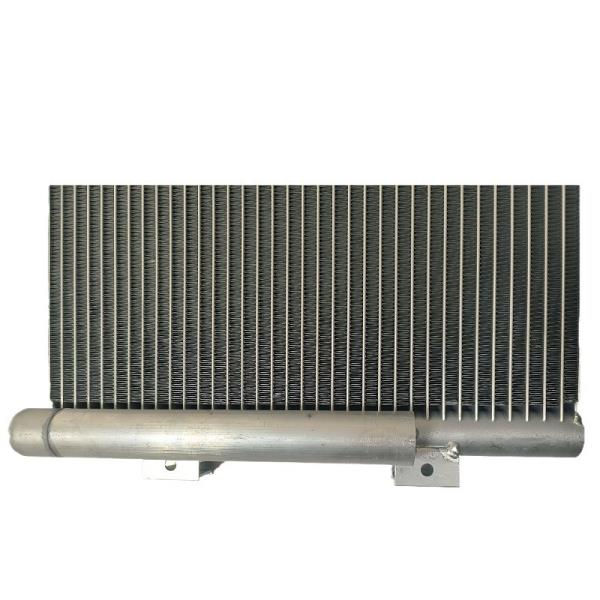

Part No.
产品编码：230106
Approximate heat exchange
大约换热量(RefR134a):
7192W
Category
属性类别
Parameter
参数名称
Specification/Description
规格/描述
Structural Parameters
结构参数
Fin Spacing
翅片间距
8mm

Tube
扁管
  mm

Header Diameter
集流管直径
φ30mm

Length
长度
387mm (Customizable可定制)

Width
宽度
354mm(Customizable可定制)

Thickness
厚度
25mm
Basic Info
基本信息
Type
类型
Parallel Flow Condenser/Microchannel Condenser平行流冷凝器/微通道冷凝器

Application
适用领域
Automotive Air Conditioning,Home & Commercial Air Conditioning,Industrial Refrigeration
汽车空调、家用空调、商用制冷设备、工业制冷

Fins Material
翅片材质
Aluminum Alloy
铝合金

Tube Material
管路材质
Aluminum
铝
Materials
材料
Header Material
集流管材质
Extruded Aluminum Alloy
挤压铝合金
Performance Parameters
性能参数
Operating Pressure
工作压力
1.5-2.7 MPa

Burst Pressure
耐压强度
5.3 MPa

Heat Transfer Efficiency
换热效率
≥95%

Applicable Refrigerants
适用制冷剂
R134a/R1234yf/R410a/R22
Quality Control
质量检测
Helium Leak Test
氦气泄漏测试
0.84×10-8mbar ·L/s
Surface Treatment
表面处理
Anti-corrosion Coating
防腐涂层
Spray Coating
喷涂涂层

Color
颜色
Black/Silver/Customizable
黑色/银色/定制
Installation Interface
安装接口
Inlet/Outlet Type
进出口类型
O-Ring/Threaded/Quick Connect
O型圈/螺纹接口/快接式

Installation Method
安装方式
Bracket
支架
Packaging&Storage
包装&存储
Packaging Method
包装方式
Carton+Foam/Wooden Box
纸箱+泡沫/木箱

Storage Temperature
存储温度
-40°℃ to 85℃

Warranty
保质期
2-5 years

18089W Aluminum HVAC Condenser – High-Efficiency Cooling for Industrial Applications
Looking for a powerful and durable HVAC condenser? The 18089W aluminum HVAC condenser from JingyiGroup is engineered for optimal heat transfer, energy efficiency, and corrosion resistance, making it perfect for food processing, power plants, medical facilities, and chemical industries.
✅ High-efficiency aluminum core for superior cooling performance
✅ Corrosion-resistant design ensures long-term durability
✅ Lightweight and durable structure for easy installation and maintenance
✅ Optimized for industrial & commercial HVAC systems
🔹 Bulk orders & OEM customization available!
📩 Contact us today to get a quote!
